DRILLING

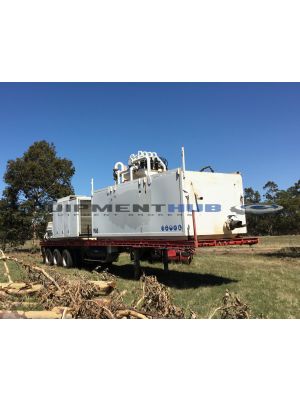

Complete Mud System Main Engine: Cummins Model KTTA-19-C700, rated at 700 HP (522 kW) at 2100 RPM to power main water pump, agitator and transfer pump hydraulics • Fitted with sounds attenuation enclosure • Fitted with spark arrestor mufflers • 1000 L Fuel Tank on-board • 320 L Air Receiver (for air start) Secondary Engine: SUN 3105, rated at 48 HP (36 kW) at 2,300 RPM to power agitator and transfer pump hydraulics only (for diamond drilling) • Fitted with spark arrestor muffler • Fuel and Air shared with above Hydraulics System: Highest quality axial and radial piston pumps and motors. Three independent open circuits. Full flow 10 micron beta rated return oil filtration. Larger than average hydraulic hoses and control valves. • 600 L Hydraulic Tank FMC M2836 Mud Pump: Hydraulically Driven Triplex Piston Pump • 1570 psi • 347 GPM (1313 L/min) continuous • 433.7 GPM (1640 L/min) intermittent FMC M2836 Inlet Boost: Southern Cross 125/100 Centrifugal Pump, Hydraulically Driven. Suction side fitted with Junk Box (Strainer). FMC M2836 Discharge Dampeners: Fitted with 2x Status Flow SFT-21000 Series Discharge Dampeners. Site Transfer Pumps: 2x Victor S108 Centrifugal Pumps • Self priming pump • For transferring fluid from settling tanks/sumps • For supplying mud cleaning system where applicable • 550 GPM (2080 L/min) • Hydraulically Driven Auxiliary Transfer Pumps: 1x Robins 305 Centrifugal Pumps • For supplying mixing hoppers • 240 GPM (900 L/min) • Hydraulically Driven Mud Mixing Tank: 1 x 23000L Rectangular tank • 2x Mixing hoppers • 2x Agitator • Work platform/mixing station at each end of tank Trailer: Standard 45’ Tri-axle Flat Deck Dimensions: 2,490 x 13,720 x 4,500 mm Also Includes: - Shale Shaker w/ Sand Cones *Please Contact Us For More Information* Location: TBA Learn More

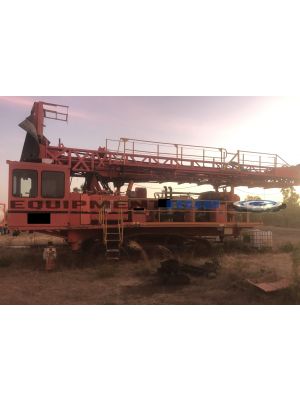

Make: Sandvik Drilltech Model: D75KS Engine: Caterpillar CAT 3412 - 2 x Rotation Heads (One still on mast) - Complete Mast (New Generation) - Air End - Air Receiver Track Mounted Rotary Blast Hole Drill Rig Location: Northern Territory, Australia Learn More

Down Hole Bits Type / Size: 127 mm Quantity: 15 *New* Location: Northern Territory Learn More

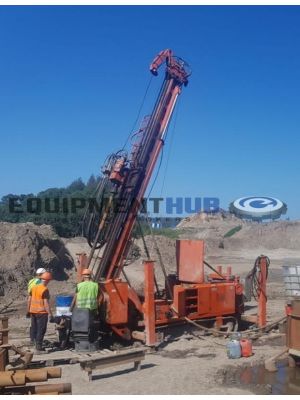

Make: Hanjin Model: D&B P6000SD Year: 2008 Hours: 8,700 Engine: Hyundai D6BT 180 HP / 1,800 OB Drilling Depth: Up to 1,300 m Drilling Diameter: 100-300 mm Drilling Tool Lowering Force: 8 Ton Drilling Tool Lowering Speed: 1.4 m / sec Feed Stroke: 5.5 m Reverse Speed: 0.6 m / sec Reverse Force: 16 Ton / 160 kN Hydraulic Clamp: 76-255 mm Rods: 73 mm, 3,000 mm Crawler Chassis: Solar 55 Rotation 1 Speed: 60/400 RPM / kg. m 2 Speed: 120/800 RPM. m Type of Drilling: Submerged Pneumatic Hammer or Rotary Drilling with Three-Ball Bit Spare Parts and a set of Consumables are Included Location: Russia Learn More

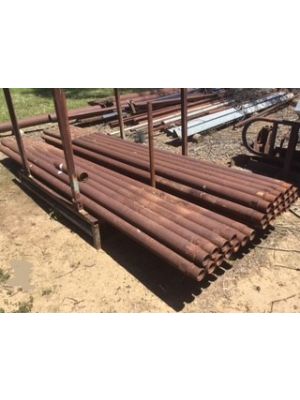

Long Rods Length: 10.7 Metre Quantity: 12 (10 x New & 2 x Second Hand) Short Rods Length: 7.7 Metre Quantity: 2 (New) Thread: Beco 3 1/2" Inch Condition: Good Location: Northern Territory, Australia Learn More

Make: Doosan Model: XHP1250 Year: 2019 Hours: 950 Engine: Caterpillar CAT C15 - Mine Spec MDG15 - Full Service History - Manuals & Risk Assessments - Pressure Vessel Inspection Completed 2 Months Ago Portable Tag Along Air Compressor Location: Queensland, Australia Learn More

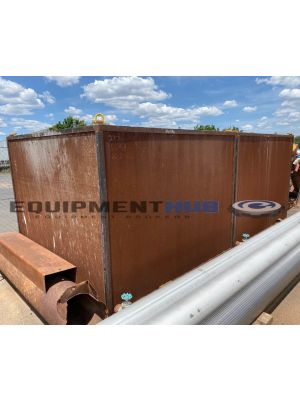

Mud Holding Tanks Capacity: 10,000 ltr Litre Quantity: 2 Location: New South Wales, Australia Learn More

Make: Yuchai Model: YC6108G Year: 2020 Hours: 0 80 kVA Generator Serial No: 41132917 Rebuilt Engine Location: Vietnam Learn More

Make: Cummins Model: KTA38 Year: 2020 Hours: 0 800 kVA Serial No: 41132917 Rebuilt Engine Location: Vietnam Learn More

Make: Cummins Model: QSB6.7 Year: 2019 Hours: 0 200 kVA Generator Serial No: 73094216 Rebuilt Engine Location: Queensland, Australia Learn More

Portable Skid Mounted Cone Penetrometer Test (CPT) Unit Hours: 97 Approx. Stroke: 1.50 m Ram Stroke: 1.20 m All Self Powered Hydraulics Does Not Include Electric Cone & Rod Gear Dimensions (m): 2.3 (L) x 0.95 (W) x 1.85 (H - Travel) Full Stroke Height (m): 3.30 Location: TBA Learn More

Rig Make: Boart Longyear Model: 850 / GK850 Year: 1988 • Maintenance records available • Power pack CAT 3208 • Engine no. Reman. 9WC03146 Ref.no:2W8227 • Main pump set replaced 2020 • Hydraulic system and hosing good to fair condition • All hydraulic rams have been removed resealed and replaced • Control panel all required gauges are working • Controls worn but all functional – very basic compared to modern machines • Tower appears to be in good to fair order , appears to have had sections taken and replaced ( feed ram has been removed resealed and replaced . • A frame could not see any visual cracking , no obvious signs of wear • No dump mast fitted • Drill head very robust 3 speed GK /KL style drill head • Floating spindle fitted • Set up for diamond drilling but can be changed over to RC ( Full complement of equipment to change over to RC. comes with the rig ) • No visible leaks on the drill head • Tower hosing poor would require re hosing and redirecting . • Pull down ropes , will need replacing • Pull back ropes / right hand side inside the tower U/S will need replacing ( 3 new ropes come with the rig) • No on board compressor fitted • Hydraulic variable speed FMC / Bean pump fitted • Hydraulic foot clamps fitted ( Universal unit ) not UDR • Foot clamp inserts HW -HQ- NQ sets • Hydraulic Break out ( old style cut down 48” Stilson) • Hydraulic Drill deck adjustable forward and reverse • Auxiliary hydraulic connections fitted – mud mixer and hydraulic flex drive • Swing out rod bin fitted • No rod handler fitted • Main winch in good order winch rope needs replacing • Wire line winch mounted on top of the head wire S/S 6mm in good condition • 1 x BLY overshot • 1 x 16t haul plug • 1 x 25t haul plug • LED lighting fitted for night shift drilling • Very basic coring rig with RC capabilities • Drill pipe on rig 3 ½” Remet RC with out inner tubes 12x6 meter Condition: Average – Usable / Truck Make: Interational Model: Acco Year: 1988 KM's: 101,000 Type: 6x4 • Colour: White • Road ranger gear box • New clutch fitted • Engine Cummins VT 190 • Truck and body fair condition / no rust and no dents • Cab in fair condition considering age • Paint work faded tyres good with spare • Un-registered / Jack Up Base • Gold city engineering rod sloop • SWL 12tn • Condition good • Colour: White • Diesel / hydraulic system • No visible oil leaks • Build date unknown / Drill Pipe (Casing and Barrels) On Rod Sloop • HWT casing 22 x 6 meter ( 3mtr joints) • Condition reasonable ( 60%) • HQ drill pipe 36 x 6 meter • Condition Good (75%) • NQ drill pipe 68 x 6 • Condition good (75%) • 1 x Barrel PQ used complete 1.5 meter • 1 x 3 meter STD HQ barrel used • 1 x 3 meter HQ hex ( chrome) Barrel • 1 x 3 meter NQ Flexi barrel new • 2 x 3 meter STD barrels new • 1 x 3 meter HEX ( chrome ) Barrel new • 2 x 3 meter HQ inner tubes new + 2 nq innertubes used • 8 x 6 meter NQ core tubes rusty but unused • Assortment of 3.1 meter and 3.5 meter NQ inner tubes rusty but usable • 2 x 100mm heavy weight reaming bars NW box – box NEW • 1 x 7” hole opener blade bit and sub • Hydraulic Flex drive motor in frame with 10 meter hydraulic hoses and connections • No flex drive pump • 2 x Honda pumps (petrol) 2” fire fighter – 2” Trash pump • 1 x Dawn vice / fitment for on rig . • 1 x Mud mixing funnel and venturi S/S • Triple tube pump out subs NQ and HQ 1 each • Assorted back end spares HQ and PQ BLY new Gen latches etc / Ancillary Equipment • RC change over components • 2 x Head inner tube with air swivel and diverter box • 1 x spare diverter box • Cross over subs • Side entry swivels x 3 used will need rebuilds • 5 x BLY 40 k swivels – with OEM rebuild kits • 1 x Cyclone and mount / cyclone mounted on Bull bar of rig carrier • 1 x Tower extension frame for running drill pipe with tower at 60 Degrees • 1 x mud Pump Gardner Denver Duplex • Type FXGFXR / new liners and swabs fitted • SN:904594 5” liners 200gpm • New plumbing fitted with Oteco pressure relief valve • Set of 3” suction hoses and foot vale with screen • Pump drive PTO to tractor • 1 x Kubota tractor L285 30HP with PTO connection • Service hrs 2780 • Build date Unknown • SN: 12139 • Engine model no: V1500-0 30hp • PTO driven FMC pump • Model : 1122 • SN:061596B1 • Condition unknown • Assorted hand tools Stilson used Aluminium and cast iron Rigid 36” 5 • 2 x sets pipe racks for diamond drilling • 2 x 2000 litre Steel mud tanks in good condition / 20ft Container Contents • 1 x 20ft Container in good condition / no rust and no dents • 20 x NQ impreg. assorted series new • 2 x NW shoe bits new – impreg. • 9 x used NQ assorted series bits no real value • 11 x HQ and HQ3 bits Impreg assorted series • 1 x HQ3 surface set new • 2 x SW shoes new impreg • 4 x PQ3 impreg bits assorted series new • 1 x PQ3 surface set new • 2 x HQ3 pump out subs used • 2 x PQ3 pump out subs used • Core lifters HQ3 and PQ3 quantity • 4 x PQ back ends BLY used • 6 x HQ back ends BLY used • 5 x NQ back ends BLY used • Large quantity of Back end spares – Grease caps , latches , witches hats, role pins , shut of rubbers -upper bodies , upper latch bodies , bearings – NQ-HQ.PQ • Quantity water swivel rebuild kits – 40 k Brass inners ,bearings , seals • 4 x sets of over shot dog sets with pins • 4 x complete FMC pump rebuild kits , includes piston rods – crank shaft – bearing , gears , gasket sets , etc • FMC pump swabs and seats • Quantity of Back end roll pins all assorted sizes • Casing cutters BQ-NQ-HQ ( Boart long year and Bradley cutters) • Quantity of spare parts for cutters blades – pins – balls and seats • 2 x NQ Van Ruth plugs new • Assorted NQ and HQ rubber displacement plugs • 3 x NQ Diamond pipe fishing taps - used • 3 x HQ Diamond pipe fishing taps 1 x new 2 x used • 2 x HQ core tubes complete with back ends used • 3 x HQ tubes with splits new • 11 x HQ split sets 3mtr S/S x 1.5 - Black steel x 4 sets rusty • 2 x PQ innertubes 1.5 mtr new • 2 x split sets PQ S/S 1.5 meter • 1 x PQ Barrel 1.5 Meter new • 2 x NQ 3 meter STD barrels new • 5 x sets NQ3 split sets 2 x sets S/S 3 sets Black steel rusty new • 4 sets Aluminum camera rods used • Assorted camera landing subs NQ, HQ,PQ • 3 x Over shots – used • 3 x 6” soft ground formation tri cone drill bits used • 3 x 5” blade bits used • 1 x 8” blade hole opener new • Assorted PCD bits 125mm 99mm used • Quantity of assorted subs – NQ, HQ ,PQ – NW pin • Palmer spanner PQ , HQ, NQ new / Location: Queensland, Australia Learn More

Make: Karcher Model: B100 250R Hours: 177 Type: Electric Includes: - Charger & Key - 2 Brushes - Wheels - Horn - Park Brake - Emergency Stop - Water Intake - Screw on Cap for Emptying Water Dimensions: 75 x 42 x 61 Ride-On Scrubber Location: Queensland, Australia Learn More

Make: Cummins Model: 6CT 8.3 Year: 2019 Hours: 0 Serial No: 44193051 150 kVA Generator Rebuilt Engine *Video can be supplied* Location: Queensland, Australia Learn More

Make: Caterpillar Model: D343 Year: 2019 Hours: 0 Quantity: 2 250 kVA Generators Rebuilt Engine *Video can be supplied* Location: Queensland, Australia Learn More

Make: Caterpillar CAT Model: 3412 Year: 2019 Hours: 0 500 kVA Generator Serial No: 73W17471 Rebuilt Engine *Video can be supplied* Location: Queensland, Australia Learn More

Make: Caterpillar CAT Model: 3408 Year: 2019 Hours: 0 300 kVA Generator Serial No: 48W9433 Rebuilt Engine *Video can be supplied* Location: Queensland, Australia Learn More

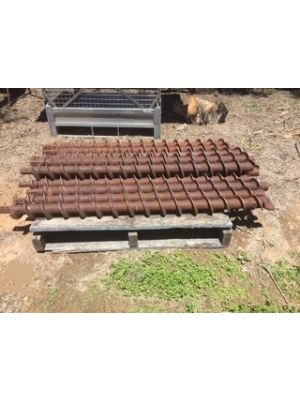

Solid Flight Augers Size: 1.5 m 5" Inch Quantity: 12 Hex Drive *Near New* Size: 1 1/2" Inch Quantity: 1 Location: New South Wales, Australia Learn More

Make: Goldfields RC 30 x 3 m 2 7/8" Inch RC Drill Rods w/ Inner Tubes 3 x 6 m RC Drill Rods w/ No Inner Tubes Location: New South Wales, Australia Learn More

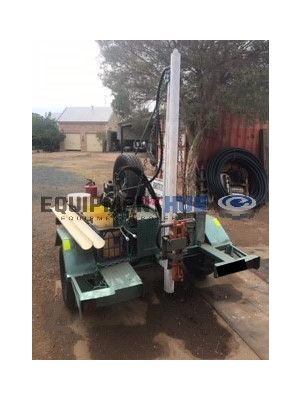

Make / Model: Christie Engine: Ruggerini Diesel Electric Start Trailer: Heavy Duty - Registered Until 01/10/2021 Trailer Mounted Soil Coring Drill Rig Location: New South Wales, Australia Learn More
