Drill Rigs - Horizontal

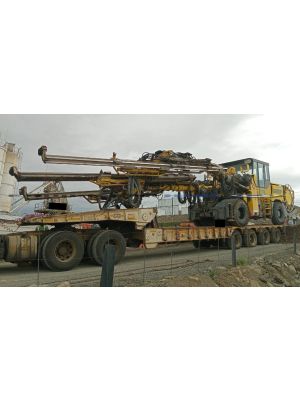

Make: Atlas Copco Model: Boomer E2C Year: 2010 Directional Drill Drifter: COP 1838 Condition: Good Location: China Learn More

Drill Rig Hydrapower Scout Mark V Year: 2009 Hours: 6300 Recently Overhauled, Minespec'd MDG15 & MDG41 Compliant - Versatile Rig Includes: - Bean Pump - Cummins Power Pack - Dump Mast - New Spindle - New Clamps - New Hydraulic Pumps Truck Make: Hino Model: GT Year: 1994 4x4 - New tyres all round Location: NSW Learn More

2 x 1980 Volvo 16 Speed F12 Trucks - 1 x with Palfinger Crane & 1 x Mounted Drill Rig 1x 1994 Isuzu NPR 66 Series Crew Cab Truck 1 x 1992 Traymark Caravan *Package Deal* 1981 Midway 13M Rotary Table Kelly Drive Drill Rig Mounted on 1980 Volvo 8x4 16 Speed F12 Carrier with Onboard Welder / Generator, Mud Pump and Compressor & c/w Aluminium Drill Pipe Truck Make: Volvo Model: F12 8x4 Year: 1980 KM's: 503,210 16 Speed Drill Rig Midway 13M Rotary Table Kelly Drive Year: 1981 Hours: TBA Onboard: Welder / Generator 5x6 Gardner Denver GD Duplex Mud Pump LeRoi 500 CFM / 250 PSI Compressor Comes With: 400 m of Aluminium 4-1/2" OD, 2-7/8" IF Thread Drill Pipe 1980 Volvo 8x4 16 Speed F12 Truck w/ Mounted Palfinger Crane & Pipe Truck Make: Volvo Model: F12 8x4 Year: 1980 KM's: 134,310 GVM: 27,000 Seats: 2 Chassis No: 590238 Palfinger Crane Model: PK 7000 STD Serial No: 8504070 Lifting Capacity: 3,250 kg @ 2 m 1994 Isuzu NPR 66 Series Crew Cab Truck Make: Isuzu Model: NPR 66 Series Year: 1994 KM's: 346,213 C/Cab VIN: JAANPR66PS7100896 GVM: 7,300 kg Seats: 3 w/ an Assortment of Items on Tray 1992 Traymark Caravan Year: 1992 4 x Bunk Beds 1 x Kitchenette w/ Oven, Stove Top & Fridge Table & Seating in Centre Air Conditioning VIN: 6H9T21000P2AD6014 Location: New South Wales Learn More

Make: Ingersoll Rand Model: CM-351 Type: Crawler Year: 1986 VL140 Drifter / Top Hammer Piston - Type Air Feed Motor Drifter Exhaust Muffler makes for quieter operation Steel Rack Hydraulic Guide Extension (Adjustable) w/ 1.2 m of stroke Hydraulic Cylinders for all positioning functions Track Drive w/ Disc Brakes Low Center of Gravity & Powerful Traction Hydraulic Track Oscillation Refurbished approx 2015 (including drive motor & hoses) Unused & Parked until 2018 Good Condition Ready For Work Boom Doesn't Extend Down hole Drilling: 64-120 mm (2-1/2" to 5-1/2") blast holes Fixed Length Boom 2.2 m (7' 3") width - makes easy transport Location: Pennsylvania, USA Learn More

SEG 21 Drill Rig PURPOSE: DTH hammer and direct circulation CAPACITY: 450 m depth with ø350mm. POWER: 150 kw (200 H.P) at 1.800 r.p.m. PULL UP: 2.200 kg x m. 24.000 kg. PUSH DOWN: 36.000 kg. 50.000 kg (cylinder and hoist). MAX RPM: 12.000 kg. 120 r.p.m. With 3 speeds. TOWER TABLE: Hydraulic with 320 mm ID. DRILL RODS: Ø114mm, ø140mm of 3 m long. ROD MAGAZINE: 150 m in the rig. MOUNTING: Truck 6x6 or 6x4 with M.M.A. of 26.000 kg. HOIST: 3.000 kg line pull. OTHER: Welding group 300 A. Foam pump. *Without Truck* Learn More

SEG 2160 Drill Rig PURPOSE: DTH hammer, direct circulation and reverse circulation. CAPACITY: 1.300 m depth DTH hammer. 800 m depth reverse circulation. POWER: 260 kw (350 H.P) at 1.800 r.p.m. MAX ROT. TORQ: 3.900 kg x m. PULL UP: 40.000 kg. MAIN HOIST: 75.000 kg. TOTAL PULL UP: 100.000 kg (cylinder and hoist). PUSH DOWN: 18.000 kg. MAX RPM ROTARY: 120 r.p.m. ROTARY HEAD: With 3 speeds. TOWER TABLE: Hydraulic with 700 mm total pass open. DIRECT DRILL ROD: ø140mm, ø152mm of 6 m long. REVERSE DRILL ROD: Dual wall pipe. OD ø220mm x ID ø120mm x 6 m long. MOUNTING: Truck 8x8 or 10x8 of M.M.A. of 40.000 kg. AUX. HOIST: Two. One of 3.000 kg linepull. Other of 1.000 kg. OTHER: Two welding groups of 400 A. Foam pump. Drill rig standard SEG –2160, without truck or trailler POA Mud pumps 1500 l/min –25 bar Garden Denver POA Air compressor PTO 30 m3/min / 25 bar INGERSOLRAND for down hole hammer POA Learn More

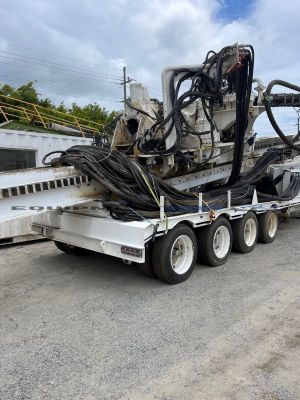

Year: 2003 Hours: 6,200 Push/Pull Capacity: 600,000LBS Engine: Cummins QSX19 Power: 800HP Drill Length: 52ft Carriage Travel: 44ft Trailer Mounted: Gallagher Quad-Axe Rig Capable of: High Speed: 70RPM / 20,000FTLBS Rotary Torque Low Speed: 25RPM / 82,000FT Rotary Torque Drillers Control Box is fitted with: - Lockable Door - Split System Air Conditioner - Desk - 240V Power Receptacles - 10 Controls *For more information/details, please contact us* Learn More

Year: 2002 Hours: 18,940 Engine: Cummins QSX15 Power: 600HP Drill Length: 52ft Carriage Travel: 44ft Trailer Mounted: Gallagher Tri-Axle Push/Pull Capacity: 400,000LBS Rig Capable of: High Speed: 100RPM / 28,000FTLBS Rotary Torque Low Speed: 40RPM / 56,000FT Rotary Torque *Complete tear down and rebuild 2015* Drillers Control Box fitted with: - Lockable Door - Split System Air Conditioner - Desk - 240 Power Receptacles - 10 Controls *For more information please contact us* Learn More

• 2 x XDL5B drill rigs, • Under 10 hours on each machine • Comes with a mountain of spares from drill pipe to bits reamers chuck jaws bearings etc • Barrels and tubes • 760mts HQ pipe • 1500mts NQ pipe $280,000 for the full package Learn More

Kempi air operated diamond rig underground 1990 model Complete setup inc rods and trailer Learn More

• 2011 Boart Longyear LM90 with 150HP electric motor fitted (LM110). • Includes supply of spare 110HP electric motor, all manuals and spare parts • Approx 700 hours • 1.5m feed frame (5 ft) • 150 HP motor SN# WWHT150-18-445TC • Skid SN#LMFP-815 • Head SN# LMF-1182 • Boart Longyear Rod Handler SN#LMRH-139 • 90 KW Electric Motor SN# 0601-227320-1 Learn More

2012 Atlas Copco Surface Mining Drill Rig DM75 Technical Specifications: Metric Product series: DM series Drilling method: Rotary - Multi pass Hole diameter: 229 - 270 mm Hydraulic pulldown: 334 kN Hydraulic pullback: 133 kN Weight on bit: 34 t Maximum hole depth: 51.2 m Estimated weight: 68000kg Motor manufacturer: TECO Motor power:700HP @1458r/min Airprossor:51m^3 @758 kPa With rear-winch Depending on electric motor driving Hours: 600 Price: $USD1.35m Learn More

ERX 10 Tonne Post Hole Lifter (4x Brand New Units ready to fit to trucks) Previously been fitting them to 6 x 6 international trucks. All PLC hard and soft ware is IFM and supported Global. Fitting to trucks is possible here in our works. Learn More

2011 Diamec U6 PHC Underground Core Drilling Rig Learn More
