Grouting Equipment

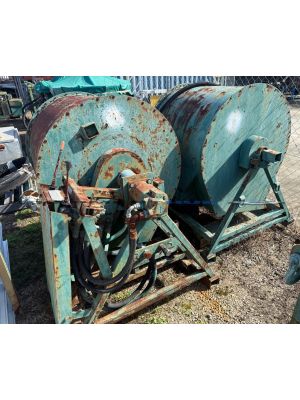

Make: Custom Made Model: GT500 Year: 1997 Dimensions; Length: 2 Metres Width: 1.5 Metres Height: 1.2 Metres Weight: 680 kg each Bowl Capacity: 500 Litres each - Mazda Power Packs or larger most suitable for these mixers - Last Used approx. 2014 - Controlled Independently - Specifically designed to mix large volumes of High Early Strength Non-Shrink Grouts very quickly - Cycle times were designed to be less than eight minutes and continuously - Indeed full truckloads of fast setting grouts were mixed and placed using these machines in less than a shift - Mixers were commonly mounted and used from the back of our truck - There are two mixers; a left hand and a right hand - When used together the controls were in the centre between the mixers - When configured like this one operator would control both machines - One machine would be dumping while the other one was mixing - Output was continuous and in less than eight minutes per batch - Mixed grout was dumped into a hopper and taken to the site needed - Forklift Channels (Center Balanced) - Machine has mixed; Proprietary Cement Grouts, Non-Shrink Grouts, Small Aggregate Concrete, etc. - Hydraulic Driven Skid Mounted Grout Mixers & Hoppers Location: Queensland, Australia Learn More

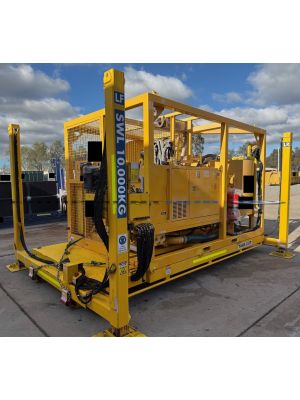

Make: Drill Techniques Model: GM-2GI Year: 2020 Height: 3.5 Metres Tare: 4,000 kg Hydraulic Jack Up Grout Unit Location: New South Wales, Australia Learn More

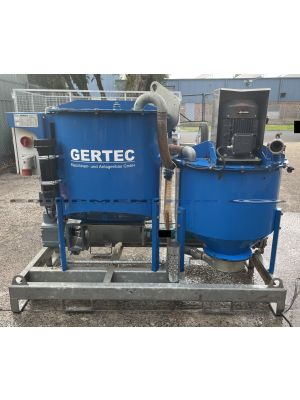

Make: Gertec Model: IS-38-E Serial Number: 44390 Skid Mounted Grout Unit Location: Victoria, Australia Learn More

Make: Gertec - Brand New - Never Used Skid Mounted Grout Unit Location: Victoria, Australia Learn More

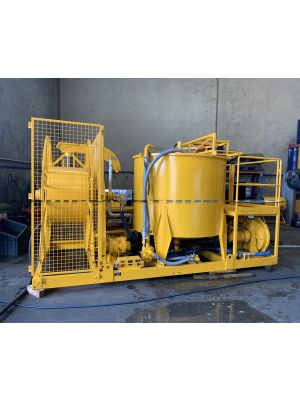

Engine: Deutz 3FL2011 - Base Frame to support all components; engine, pump, hydraulics & fuel tanks, etc. - Fuel Tank Capacity: 60 Litres - Access Ladder to Control Platform - Paint, Two Pack Evolution Yellow Hydraulics; - Pump Group Bosch Rexroth - Main Pump A10VO45 Variable Displacement - Pilot Pump 5.5 cc Gear Pump - Maximum Circuit Pressure: 160 Bar - Hydraulic Oil Capacity: 100 Litres - Return Filter: 10 Micron - Hydraulic Oil Cooler and Fan Grout Pump; Make: Bredel Model: SPX 50 - Brevini BR100NC Hydraulic Motor - Slurry Flow Range: 0-85 lpm - Maximum Pressure: 15 Bar - Adjustable Speed Control Mixing Tank; Capacity: 1,400 Litres - Hydraulic Powered Agitator - Baffle Plates inside the tank - 3" Inch Outlet to Slurry Pump - Grid on tank top for cement dispersion during mixing - Sandblasted and painted with 2 pack paint Poly Reel; Capacity: 600 metres - 40 mm PN16 SDR11 Poly Pipe, Blue Stripe, 3.7 mm Wall - Fabricated construction approx. 2.1 metres diameter - Hydraulic Drive via reduction gearbox and chain + sprocket final drive - Adjustable Speed Control: 1.5-30 m/min Control Platform; - Mounted near mixing tank - Engine controls, start, stop, throttle, etc. - Hydraulic controls for agitator, slurry pump and hose reel Dimensions; Length: 4.65 m Width: 2.35 m Hight: 2.5 m Weight: 3,500 kg approx. Skid Mounted Grouting Unit Location: Australia Learn More

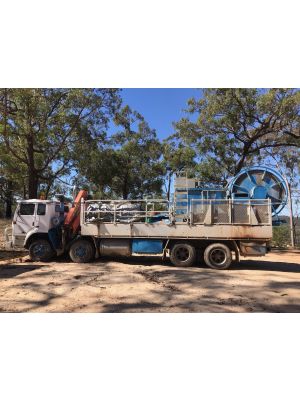

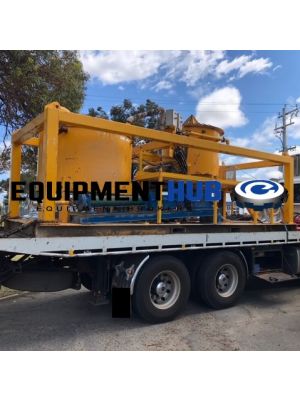

Truck Make: International Model: T2700 Year: 1994 Engine: Cummins 350 HP KM's: 925,000 Type: 8x4 Grout Unit Make / Model: Drillex Year: 2011 Hours: Less than 5,000 - 800 m Capability - HIAB Crane Fix for Handling 1 Tonne bag of Cement Powder - 4,000 Litre Mixing Tank and Hopper - Large Capacity Mono Pump - 10,000 Litre Flat Bed Water Tank - 8 Tonne Cement Storage - PTO Driven Hydraulics Bulk Handling Self-Contained Grouting Rig Location: Queensland, Australia Learn More

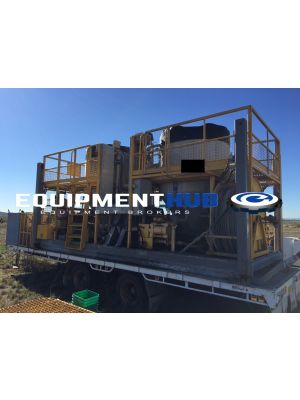

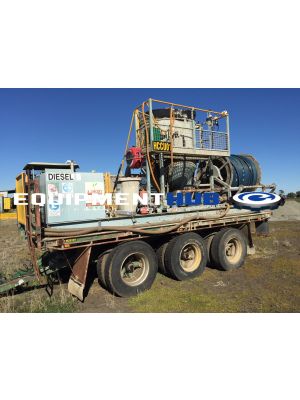

Make: Home Made Model: 2,000 Ltr Mono Pump Deitz Power Unit Year: 2017 Single bowl cementing/grouting unit & the trailer it sits on. Good Condition Location: Queensland, Australia Learn More
