Drill Rigs - Vertical

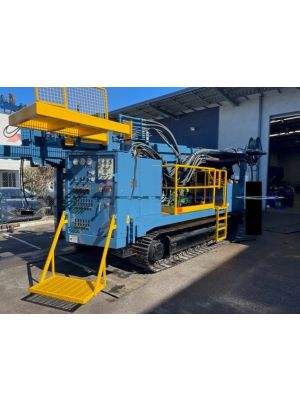

Make / Model: CE100 Year: 2013 (Rebuilt completed in 2022) Hours: 551 - Fully Re-Engineered - NDT Testing Completed - CT14 Hydraulic Operating System - NQ, HQ, PQ Drilling Capabilities - Up to date Safety Stop Systems - Engineered and compliant hand rail and walkway system and access ladders - Full lighting for N/S operations - Certified FOPS on driller platform - Running new Danfos Primary Hydraulic Pump at >3500 PSI direct from John Deere 127 HP - 165 HP engine - 5.7 Tonne Main Winch with certified 16mm Winch Rope - A new AMC Main Water Pump <1000 PSI with a PRV Valve Set @750 PSI - New Stryker 45ltr Certified Fire Suppression system installed - A UDR Rod Spinner has been engineered into mast structure for hands free operation of tripping rods - A hydraulic operated Breakout Spanner allows for breakout of rod joins or subs - Tungsten inserts interchangeable on Breakout Spanner - UDR Foot Clamp assembly added for ease of maintenance and clamping of rod string Diamond Core Track Mounted Drill Rig Location: Western Australia Learn More

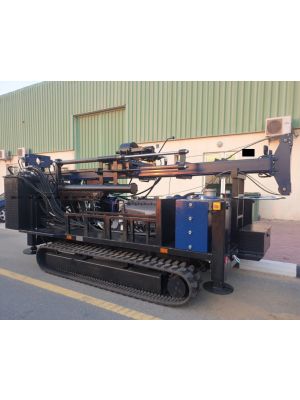

Model: 150N Engine: John Deere / FPT Iveco / Kirloskar / Deutz Pull Up Force: 5,000 kg Pull Down Force: 3,750 kg Tool Winch Hoisting Capacity: 2,500 kg (Bare Drum) Wireline Winch Hoisting Capacity: 500 kg (Bare Drum) Diamond Core Drilling Capacity; NQ Size: 150 m HQ Size: 90 m PQ Size: 60 m Water Pump; Max Flow: 120 LPM Max Pressure: 30 bar Type: Triplex Piston Pump Track Mounted Multi Purpose Drill Rig Location: United Arab Emirates Learn More

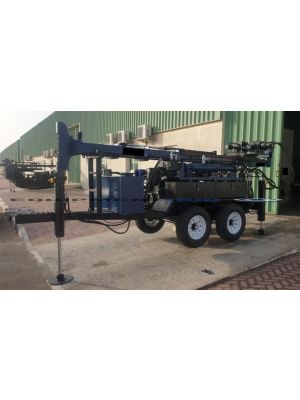

Model: 75N Engine: Kirloskar / Deutz / John Deere Pull Up Force: 2,500 kg Pull Down Force: 2,500 kg Tool Winch Hoisting Capacity: 1,500 kg Diamond Core Drilling Capacity; NQ Size: 75 m HQ Size: 45 m PQ Size: 30 m Mud Rotary; 30 m @ 150 mm Diameter Auger Drilling; 20 m @ 150 mm Diameter 4 m @ 300 mm Diameter Water Pump; Max Flow: 85 LPM / 140 LPM Max Pressure: 30 bar / 18 bar Type: Triplex Piston Pump / Progressive Cavity Pump Compact Geotechnical Drill Rig Location: United Arab Emirates Learn More

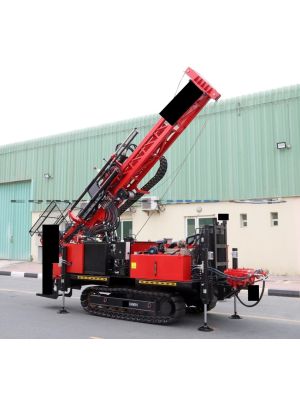

Model: 1000N Engine: John Deere FPT Kirloskar 4 Cylinder Turbo Charged @ 160 HP Pull Down Force: 8,000 kg Retract Force: 12,000 kg Max Torque: 5,000 Nm Max Rotary Speed: 1,250 RPM - CCTV Camera System - Tools Box - Safety Cage Diamond Core Drilling Capacity; N Wireline: 1,000 m H Wireline: 600 m P Wireline: 400 m Mud Pump; Max Flow: 140 LPM Max Pressure: 50 bar Triplex Piston Pump Track Mounted Drill Rig Location: United Arab Emirates Learn More

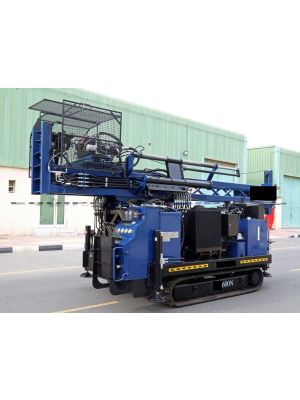

Model: 600N Engine: John Deere FPT Kirloskar 4 Cylinder Turbo Charged @ 160 HP Pull Down Force: 5,000 kg Retract Force: 7,000 kg Max Torque: 5,000 Nm Max Rotary Speed: 1,250 RPM Main Winch Capacity: 5,000 kg - CCTV Camera System - Safety Cage - Tools Box Diamond Core Drilling Capacity; N Wireline: 600 m H Wireline: 400 m P Wireline: 250 m Mud Pump; Max Flow: 140 LPM Max Pressure: 50 bar Triplex Piston Pump Track Mounted Drill Rig Location: United Arab Emirates Learn More

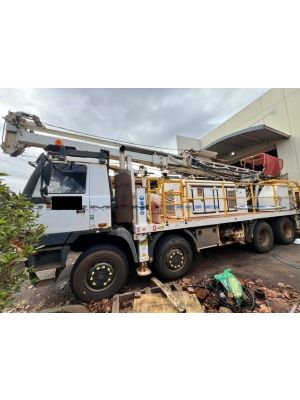

Rig Make: Boart Longyear Model: LF90 Year: 2008 Hours: 14,154 - Fitted with KWL 400 Head as Top Drive - Masts are locked at 6 Metre Rod Pull - Has been drilling in Iron Ore Truck Make: Tatra Year: 2008 KM's: 37,735 Type: 8x8 Truck Mounted Drill Rig Location: Western Australia Learn More

Make: Drillmec Model: G75 Year: 2012 Hours: 50 to 200 Hydraulic System: HH75 Quantity: 5 Drill Rig Location: China Learn More

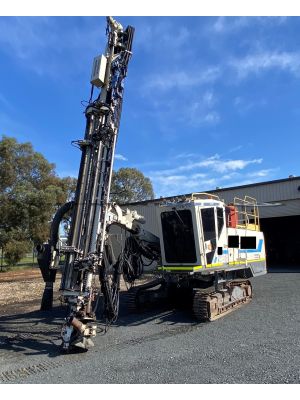

Make: Furukawa Model: HCE 1500 EDII Year: 2008 Hours: 9,615 Drifter Model: D751RP Drifter Hours: 4,546 Engine: Caterpillar CAT C9 Onboard Air Compressor: Airman - Main Pump was replaced under warranty in May 2015 Track Mounted Drill Rig Location: Australia Learn More

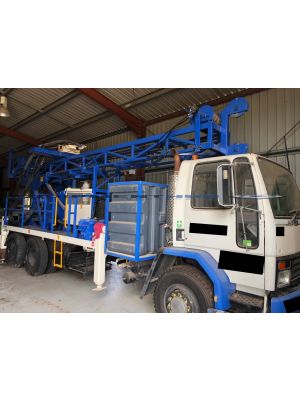

Make: Mole Pioneer Model: P400S 450HQ Hours: 2,940 Engine: Perkins 119 kW Diesel - Onboard W1122 Bean Pump Rotation Head Model: KL400 Top Drive Stroke: 1,200 mm Drilling Angle: 90 degrees vertical to 45 degrees horizontal Drilling Depth Capacity B Size: 900 metres N Size: 700 metres H Size: 450 metres P Size: 275 metres Truck Make: Ford Model: Cargo Series KM's: 25,372 Year: 1985 Type: 6x4 Condition: Good *For more information, please contact us* Mole Truck Mounted Drill Rig Location: Queensland, Australia Learn More

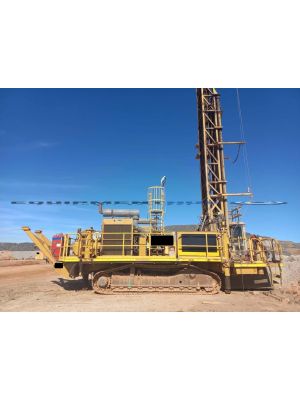

Make: Caterpillar Model: MD6240 Year: 2012 Hours: 30,000 Engine Number: QST30-327139640 Serial Number: 2U65X75 Onboard Air Compressor: Sullair 1,500 CFM / 350 PSI - New GPS Fitted and included in price Track Mounted Drill Rig Location: Western Australia Learn More

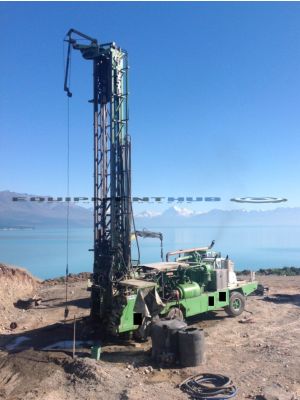

Drill Rig Make: Chicago Pneumatic Model: CP650 Year: 1981 Engine: Caterpillar CAT 3406 Onboard Air Compressor: GHH 825 CFM / 350 PSI Twin Screw Injection Pump: Comet APS 71 ltr/min @ 580 PSI Casing Driver: 612 Banger 6" Inch - 12" Inch Winch: 1/2" Inch 7,000 lbs Extendable Rod Handling Jib Hole Capacity: 6" Inch - 12" Inch 500 m 4 1/2" Inch Rods Capacity; Pull Down: 21,000 lbs Pull Back: 55,000 lbs 5 1/2" Inch Heavy Hoist Rams 73 ft/min Rapid Feed - 160 Pitch Chains Levelling Jacks; Front: 1 x 5" Inch x 48" Inch Stroke Rear: 2 x 5" Inch x 36" Inch Stroke Top Drive Rotary; 0-152 RPM - 76,000 lb Torque Twin Dynex Motors R/C Head - 7 m Travel Carrier Type: 6x4 Engine: Caterpillar CAT 3208 @ 210 HP Crane Carrier Carrier Mounted Water Well Drill Rig Location: New Zealand Learn More

Model: FH3000 Engine: Cummins QSL Electronic @ 255 kW (342 HP) Pull Back: 280 kN (62,900 lbf) Limited Speed 244.8 kN (55,033 lbf) Full Speed Pull Down: 115 kN (25,853 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 2,030 m HQ Core: 1,377 m Open Hole 3 1/2" Inch Rods: 900 m RC 4 1/2" Inch: 600 m (Nominal) Traverse Speed; Maximum Speed: 55.5 m/min (182 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 14,324 Nm (10,564 ft/lb) in low gear - 0-1,500 RPM Speed Range - 100% Theoretical Main Winch; - Maximum Pull: 226 kN (50,806 lbf) - Maximum Speed: 100 m/min (328 ft/min) - 2x Multi Disc Brake Units - Fail Safe Spring Activated - Hydraulic Pressure Release - 9 Metre Rod Pull Capacity Wireline Winch; - Maximum Pull: 27 kN (6,069 lbf) - Rope Capacity: 3,000 Metres x 8 mm Rope - Maximum Speed: 450 m/min (1,476 ft/min) New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

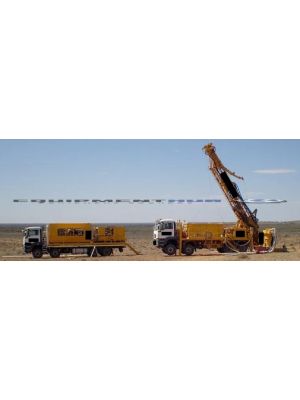

Model: FH2000 Engine: Caterpillar CAT C7.1 Electronic @ 205 kW (275 HP) Pull Back: 280 kN (62,900 lbf) Limited Speed 244.8 kN (55,033 lbf) Full Speed Pull Down: 115 kN (25,853 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 2,030 m HQ Core: 1,377 m Open Hole 3 1/2" Inch Rods: 900 m RC 4 1/2" Inch: 600 m (Nominal) Traverse Speed; Up: 50 m/min (164 ft/min) Down: 39 m/min (128 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 14,324 Nm (10,564 ft/lb) in low gear - 0-1,500 RPM Speed Range - Bosch Rexroth A6VM160 Variable Displacement Motor - High Gear 3:1 & Low Gear 19.57:1 ratios - Adjustable Rotation Torque Control - Infinitely Variable Rotation Speed Control - Floating Spindle 3 1/2" Inch API IF Pin Thread - Pressure Lube Bearings and Gears with filtered and cooled lubrication oil system Main Winch; - Maximum Pull: 156 kN (35,048 lbf) - 120 m/min (394 ft/min) - Mast Top Mounted - Electronic Winch Travel - Fail to safe - 28 mm Main Winch Rope - Safety Factor 3.35:1 (exceeds BS/EN791) - 1x Bosch Rexroth A6VM160 Variable Displacement Motors - 1x Brevini Planetary Reduction Gear Boxes - 1x Multi Disc Brake Units - Fail Safe Spring Activated - Hydraulic Pressure Release Wireline Winch; - Mast Mounted - Maximum Pull: 25 kN (5,617 lbf) - Rope Capacity: 2,100 Metres x 8 mm Rope - Adjustable Position Wireline Spooler - Maximum Speed: 450 m/min (1,476 ft/min) - Adjustable Pull Limiter - Safety Stop System - Wireline Depth Counter as an option New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

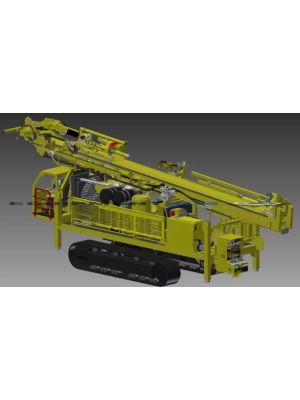

Model: FH1300 Engine: Caterpillar CAT C7.1 Electronic @ 187 kW (250 HP) Pull Back: 115 kN (25,853 lbf) Actual Pull Down: 70 kN (15,736 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 1,300 m HQ Core: 885 m Open Hole 3 1/2" Inch Rods: 380 m RC 4 1/2" Inch: 220 m (Nominal) Traverse Speed; Up: 60 m/min (196.8 ft/min) Down: 56 m/min (183.7 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 8,087 Nm (6,111 ft/lb) in low gear - 0-1,500 RPM Speed Range - Two Speed Gearbox - High Gear 3.04:1 & Low Gear 12.61:1 ratios - Variable Displacement 160cc Hydraulic Motor - Adjustable Rotation Torque Control - Infinitely Variable Rotation Speed Control - Floating Spindle 3 1/2" Inch API IF Pin Thread - Pressure Lube System with Cooler and Filter Main Winch; - Maximum Pull: 100 kN (10,000 lbf) - 120 m/min (393 ft/min) - Mast Top Mounted - Electronic Winch Travel - Fail to safe - Main Winch Rope - Safety Factor to Meet BS/EN791 - Planetary Reduction Gear Box & Brake - Variable Displacement Hydraulic Motor Drive Wireline Winch; - Deck Mounted - Maximum Pull: 15 kN (3,372 lbf) - Rope Capacity: 1,400 Metres x 6 mm Rope - Adjustable Position Wireline Spooler - Maximum Speed: 450 m/min (1,476 ft/min) - Adjustable Pull Limiter - Safety Stop System - Wireline Depth Counter as an option New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

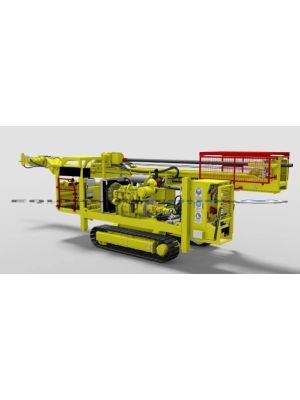

Model: FH1000 Pull Back: 97 kN (21,783 lbf) Pull Down: 45 kN (10,116 lbf) Water Pump: Standard FMC W1122BCD 140 lpm @ 1,000 psi Depth Capacity; NQ Core: 1,150 m HQ Core: 786 m HWT Core: 518 m RC 4" Inch: 198 m (Nominal) Engine Options; - John Deere Power Tech 6.8L @ 155 kW (208 HP) - Caterpillar CAT C6.6 ACERT - Cummins B5.9-173 Traverse Speed; Up: 47 m/min (154 ft/min) Down: 30 m/min (98 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 5,965 Nm (4,400 ft/lb) in low gear - 0-1,500 RPM Speed Range - Two Speed Gearbox - 100% Theoretical Main Winch; - Maximum Pull: 88.4 kN (19,870 lbf) - 55 m/min (180 ft/min) - Mast Top Mounted - 1x Multi Disc Brake Unit - Fail Safe Spring Activated - Hydraulic Pressure Release - Main Winch Rope - Safety Factor to Meet BS/EN791 - 6 Metre Rod Pull Capacity Wireline Winch; - Deck Mounted - Maximum Pull: 13.5 kN (3,044 lbf) - Rope Capacity: 1,400 Metres x 6 mm Rope - Maximum Speed: 342 m/min (1,124 ft/min) New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

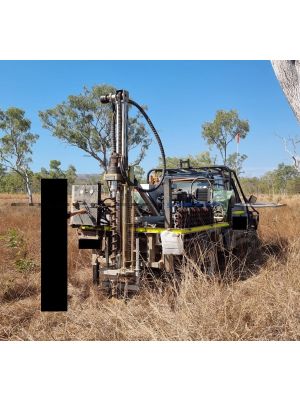

Model: 1750 Scout Engine: Perkins Diesel Torque: 2,500 Nm at 205 bar and 110 RPM Stroke: 1.75 m Pull-Out / Pull-Down: 1,100 kg Capacity (Guide Only): NQ - 60 m / 4" Inch Open Hole - 30 m / 3 1/2" Inch Auger - 15 m - Custom Toyota 33220 Tray - Direct Dive Auger Head with High Torque Head Motor and Fittings - Fine Feed Control - Auger Drive Sub (1 1/8" Inch Hex) - RHS Mast - Tilt Frame for Vehicle/Trailer Mounting - Hydraulic Tilt - Heavy Duty Pull-Down Chain - Nylon Idler Rollers - Standard Auger Guide - Standard Control Panel - Hydraulic Operation - Rain Hood for Motor & Lockable Cage for Spare Wheel & Motor - Remove Throttle and Stop - Water Filter for Fuel / Water Separation - Light Guard for Augers 500 mm to 1,800 mm - Oil Cooler - Simple Rack for Augers Options for Drill; - Hollow Spindle Head and Tooling for Fluid Drilling - 2 Levelling Jacks for Tray Mount Drills - Tilting Rack for Augers - Alternative Engine Options to suit existing fleet Toyota Landcruiser Upgrade Kit; - Roof Racks for Spare Tyre (31678) - Roof Rack Mounts Pair (31679) - GVM Upgrade Spring Kit @ 4,200 kg (Supply Only - 31680) - Bellows Suspension Kit (Supply Only - 31730) - Storage Box LH Under Deck (33249) - Storage Box RH Under Deck (33248) - Under Deck Water Tanks @ 29 Litres (33137) *Ready for mounting to a Toyota 79 Series Landcruiser Cab Chassis* Drill Rig Location: Australia Learn More

Make: Gardner Denver Model: GD 2500 Year: 1993 Hours: 3,422 Duplex Mud Pump Trailer Mounted Drill Rig Location: New South Wales, Australia Learn More

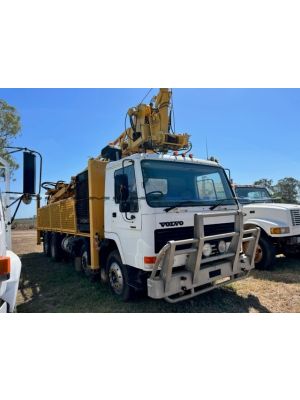

Drill Rig Make: Titan Model: 1000 Year: 2009 Engine: Cummins QSC 8.3 & QSB 4.5 Rotation Torque: 7,500 Nm & 1,100 Nm Auger Speed: 0-180 & 0-980 RPM Pullback Force: 15,000 kg - Onboard American Bean Pump - Onboard Cyclone & 75/25 Splitter Truck Make: Volvo Model: FL10 Year: 1990 KM's: 457 Type: 8x4 GVM: 30,000 kg Truck Mounted Drill Rig Location: Queensland, Australia Learn More

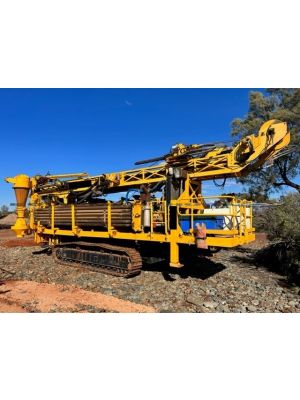

Make: Hydco Model: 1000H Year: 2008 Hours: 4,304 Engine: Cummins 6CTA Onboard Air Compressor: Sullair 1,150 CFM / 350 PSI & 900 CFM / 500 PSI Compressor Hours: 819 Compressor Engine: Caterpillar CAT C15 - Setup for mainly RC however has the diamond capabilities & equipment - Rig has recently been completing RC holes to depths of 425 m coupled with the Aux Compressor Kit giving 2,400 CFM / 1,000 PSI Diamond Drilling Capacity; HQ: 1,000 m NQ: 1,500 m PQ: 600 m Features; - Harlsan Auto Blow Up and Blowdown - KL Rod Handler - Hydraulic Breakouts - Hydraulic Spanners - Safety Cage with Interlock - Quick Access Mountable Stuffing Box Assembly - Fire Suppression - Dust Suppression - FMC Bean Pump for Diamond Drilling - FMC Dual Pump for Water Injection - Hydraulic Foot Clamps - Diamond Drilling Safety Cage - Diamond Drilling Platform - Storage Area with Safety Rails and Access Ladders - Refurbished Cyclone - New Cone Splitter - New Track Chains and Rollers - 400x Metres of 4.5" Inch Remet Rods - Airdrill 670 Hammers & Bits - Other specific RC Gear Track Mounted Drill Rig Location: Western Australia Learn More

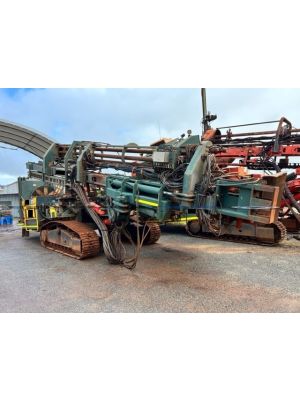

Make: Cubex Model: QXR 920 Year: 2004 (Rebuild 2019) Hours: 16,896 Engine: Caterpillar CAT C15 Rotary Head: Cubex @ 6,230 hours (Rebuilt May 2019) Rotation Torque: 5,730 Nm Rotation Speed: 0-80 RPM Variable Jaw Rotation: 15 degrees Clamping Force: 288 kN Carousel Capacity: 6 Rods Max. Rod Size: 5" Inch Min. Rod Size: 3.25 " Inch Rod Length: 6 m / 20 ft Onboard Air Compressor: Sullair + Spares Included Track Mounted Surface Drill Rig Location: Western Australia Learn More
